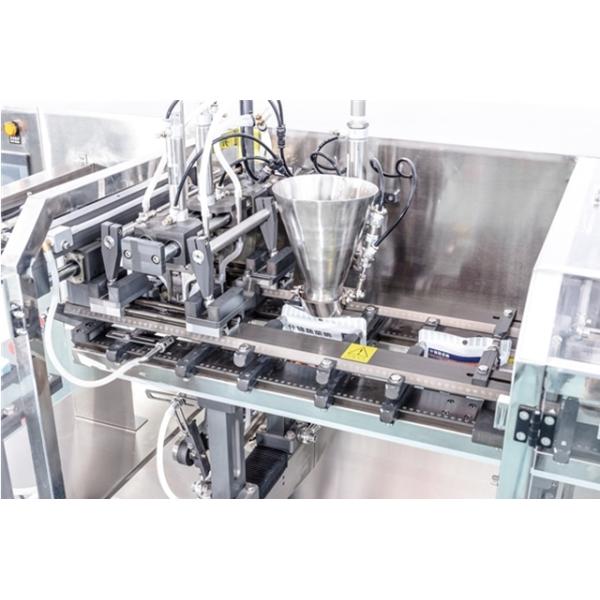

Horizontal Doypack Packing Machine Granular Powder Liquid Bag Feeding Machine
Machine Specification:
| Model: | ZC-S210 |
| Packing speed: | 15-35bags/min |
| Total power: | 2.5KW |
| Package dimensions | 80-160mm/130-320mm (W*L) (the adjustable range of M bag is 50mm) (the width of the packaging bag is slightly different according to the prefabricated bag) |
| Power supply: | 380V |
| Total Weight: | 600KG |
| Packaging capacity: | 20g-1000g (depending on the specific material) |
| Air consumption: | 0.7m3/min |
| Bag Type: | M-type bag, M-type stand-up bag and other prefabricated bags |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
The working principle of the horizontal bag feeding and packaging machine is generally composed of a bag taking mechanism, a bag opening mechanism, an air blowing mechanism, and process accessories such as filling, bag unfolding, upper sealing, and finished products. The advantages of the horizontal bag feeding and packaging machine are: long service life, good temperature resistance, large flow, and convenient operation. This is also the reason why many food industry processing plants choose this horizontal bag feeding machine.
The horizontal pouch feeding packaging machine has its own retrieval function and the horizontal packaging machine strain function during use, which can deal with the wrong leakage of materials, realize automatic non-filling of materials, and at the same time do not interrupt the next filling material, continuous operation, convenient and fast.
Performance and Features
1 Easy to operate, using imported components PLC control, with touch screen man-machine interface control system.
2. Frequency conversion speed regulation, the machine uses frequency conversion speed regulation device, and the speed can be adjusted at will within the specified range
3. Automatic detection function. If the bag is not opened or the bag is incomplete, it will not be filled with materials or heat-sealed. The bag can be reused without wasting materials, saving production costs for the enterprise.
4. The equipment adopts emergency stop braking function, which plays a role of safety protection during shutdown.
5 In line with the hygiene standards of the food processing industry, the parts in contact with the material are made of stainless steel or materials that meet the requirements of food hygiene.
6 The packaging bag has a wide range of applications. For multi-layer composite films, prefabricated bags and paper bags made of single-layer PE, PP and other materials can be used.
7. Independent material filling device, which can effectively avoid the backlash and splash of fine powder materials; ensure the quality of sealing and the appearance of finished packaging.
